for sale
SPECIFICATIONS
Type: Amateur VHF transceiver
Frequency range: 144-146 MHz
(5 / 1 / 0.1 KHz steps)
Mode: FM/SSB/CW
RF Power output: Hi: 10 W
Lo: 1 W
Receiver system: Dual conversion superheterodyne (FM)
1st IF: 10.75 MHz
2nd IF: 455 KHz
Single conversion superheterodyne (SSB/CW)
IF: 10.75 MHz
Sensitivity: FM: 0.6 uV (20 dB noise quieting)
SSB/CW: 0.5 uV (10 dB S+N/N)
Selectivity: FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
SSB/CW: 2.4 KHz (-6 dB), 4.8 KHz (-60 dB)
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: Max 0.8 A
TX: Max 3.1 A
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): 185*64*223 mm
Weight: 2.7 Kg
Manufactured: Japan, 1979-198x (Discontinued)
Other: 3 memories. NB.
Related documents: User manual (4.4 MB)
FM-IF: MC3357
Modifications:
review:
radio yang langka!
144-145 hipow 13-14watt
146-148 hipow 8-9watt
belom di open trimer nya masih presisi di 144-145

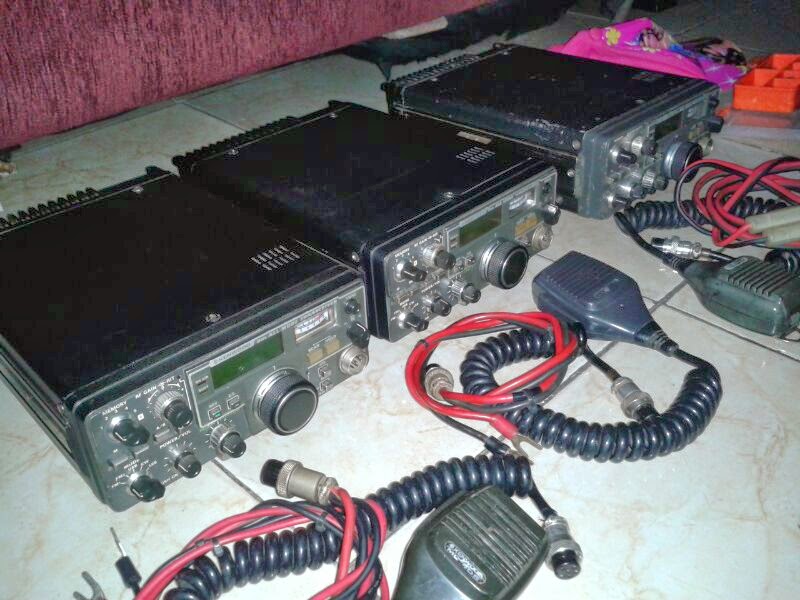

Good Working all Original Part
All Mode Working
No bracket | No dc cord original
Power radio1watt /10watt
Price :
( sold to sampit )
Call / sms : 08993348660
Whatsapp : 08993348660
PIN BBM : 7CE8D354
Thx you
